‧AC‧IGE09225
|
|
|
|
Rated
Volt | Voltage
Range | Freq | Input
Power | Ref.

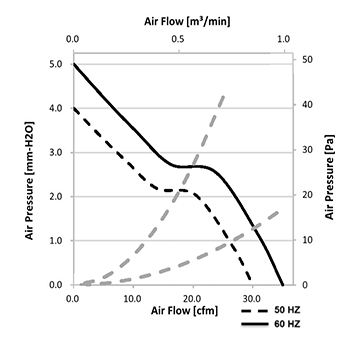

Speed | Max.Airflow | Max.Static Pressure | Noise
Level | Model No | VAC | Range(V) | Current | RPM | CFM | m3/min | Inch/H2O | mm-H2O | db(A) | IGE09225_1H | 115 | 50/60 | 15/13 | 2400/2800 | 30.0/35.0 | 0.85/0.99 | 0.16/0.20 | 4.0/5.0 | 30/31 | IGE09225_2H | 230 | 50/60 | 15/13 | 2400/2800 | 30.0/35.0 | 0.85/0.99 | 0.16/0.20 | 4.0/5.0 | 30/31 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ** = "WB" for wire lead type Ball bearing, or "TB" fo terminal type Ball bearing 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request. Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request. CROWN reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
|
|
| |
|
|
 |
|
 |
|
|
