‧AC‧IGE12038

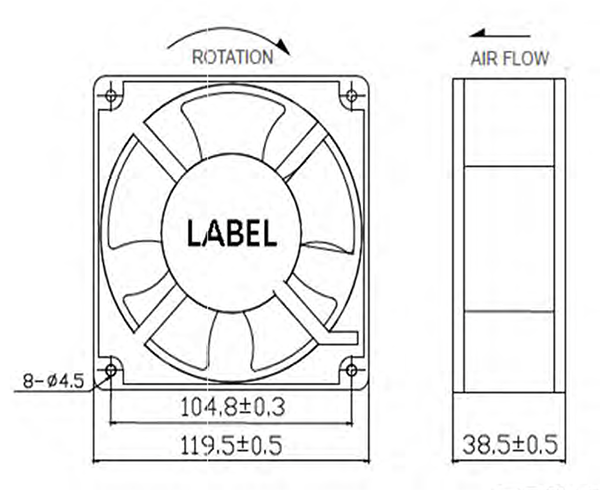

120x120x38mm
110 CFM
CROWN ELECTRONICS AC AXIAL FAN 12038

Rated
    Volt

Voltage
    Range

Freq

Input
    Power

Ref.
    Speed

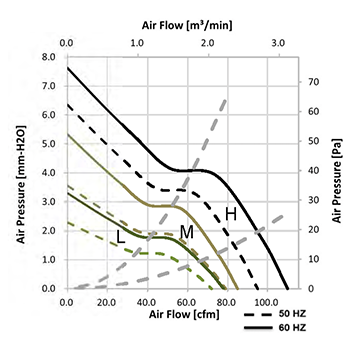

Max.Airflow

Max.Static     Pressure

Noise
    Level

Model       No

VAC

Range(V)

Current

RPM

CFM

m3/min

Inch/H2O

mm-H2O

db(A)

IGE12038_1L

115

50/60

10/8

2150/2300

72.0/78.0

2.04/2.21

0.09/0.13

2.29/3.30

26/27

IGE12025_2L

230

50/60

10/8

2150/2300

72.0/78.0

2.04/2.21

0.09/0.13

2.29/3.30

26/27

IGE12038_1M

115

50/60

13/11

2400/2600

79.0/85.0

2.24/2.41

0.14/0.21

3.56/5.33

36/37

IGE12038_2M

230

50/60

13/11

2400/2600

79.0/85.0

2.24/2.41

0.14/0.21

3.56/5.33

36/37

IGE12038_1H

115

50/60

17/15

2600/2900

95.0/110.0

2.69/3.11

0.25/0.30

6.35/7.62

43/44

IGE12038_2H

230

50/60

17/15

2600/2900

95.0/110.0

2.69/3.11

0.25/0.30

6.35/7.62

43/44





































































































  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing

  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.

  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.

  • CROWN reserves the right to change data and improve electrical or mechanical design without notice, data tolerance  +-10%





Motor type:Shade Pole AC Motor

IP Prtection:-

Frame:Aluminum die cast, black color

Impeller:Plastic(94V-0)

Bearing:Ball ; Sleeve bearings

Weights:0.53 KG
