‧AC‧JGN17569

175x175x69mm
256.8 CFM
CROWN ELECTRONICS AC AXIAL IMPELLER FAN 17569

   Rated
    Volt

     Freq

Input
Power

      Ref.
    Speed

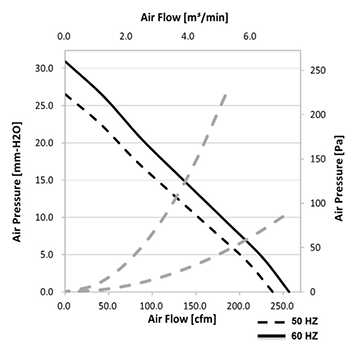

                      Max.Airflow

     Max.Static     Pressure

 Noise
  Level

Model   No

   VAC

      Hz

WATT

     RPM

        CFM

   m3/min

Inch/H2O

mm-H2O

db(A)

JGN17569B1H

   110

    50/60

48/46

2500/2700

237.8   /256.8

6.73   /7.27

1.04 /1.22

26.53/30.95

62/62

JGN17569B2H

   220

    50/60

68/80

2500/2800

287.1   /321.6

8.13   /9.11

1.29/1.61

32.65/40.96

65/65













































































































































  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing

  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.

  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.

  • CROWN reserves the right to change data and improve electrical or mechanical design without notice, data tolerance  +-10%




馬達類別:Shade pole Motor

IP 防護:IP43

外框(Frame):Aluminum

葉輪(Impeller):Plastic(94V-0)

軸承(Bearing):Ball Bearing

重量(weight)1.0 KG
