‧AC‧JGN22071

220x220x71mm
489 CFM
CROWN ELECTRONICS AC AXIAL IMPELLER FAN 22071


Rated
  Volt

  Freq.

Input
Power

    Ref.
  Speed

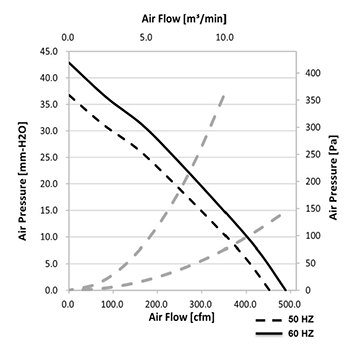

             Max.Airflow

Max.Static     Pressure

Noise
 Level

Model       No

VAC

   Hz

WATT

     RPM

    CFM

   m3/min

Inch/H2O

mm-H2O

db(A)

JGN22071B1H

110

50/60

95/100

2500/2700

452.4/488.6

12.81   /13.84

1.45 /1.69

36.73/43.85

70/71.7

JGN22071B2H

220

50/60

95/100

2500/2700

452.4/488.6

12.81   /13.84

1.45/1.69

36.73/43.85

70/71.7

JGN22071_2M

230

50/60

39/45

1430/1700

348.0/406.0

9.85/11.50

0.54/0.66

13.67/16.84

52.0/58.0



































































































































  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing

  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.

  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.

  • CROWN reserves the right to change data and improve electrical or mechanical design without notice, data tolerance  +-10%




馬達類別:Shade pole Motor

IP 防護:IP43

外框:Aluminum

葉輪:Plastic(94V-0)

軸承:Ball Bearing

重量:1.4 KG
