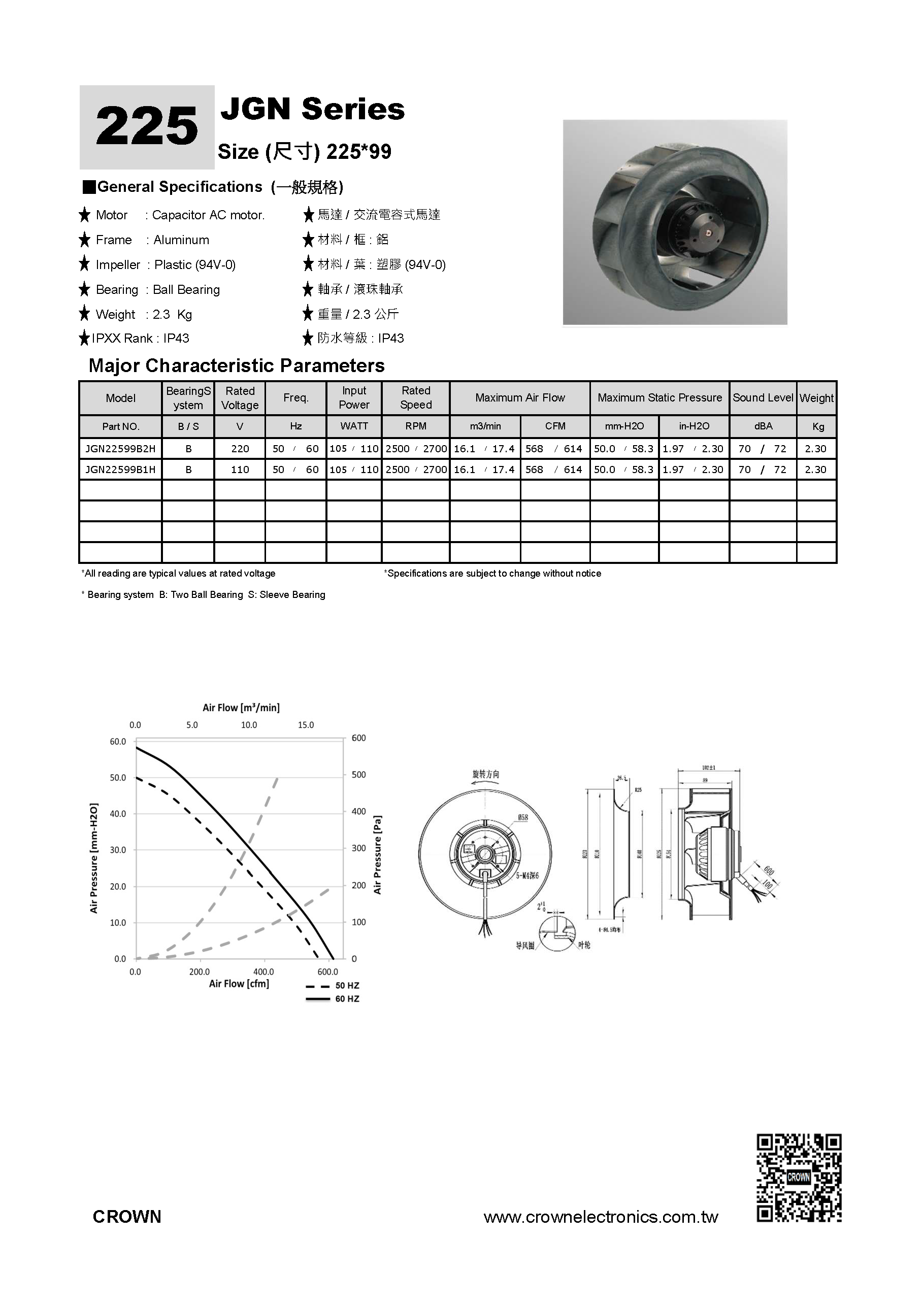

| Rated Volt | Freq. | Input
Power | Ref.
Speed | Max.Airflow | Max.Static Pressure | Noise Level | Model No | VAC | Hz | W | RPM | CFM | m3/min | Inch/H2O | mm-H2O | db(A) | JGN22599B1H | 110 | 50/60 | 110/140 | 2500/2700 | 687.4/742.4 | 19.47/21.02 | 1.96/2.29 | 49.86/58.16 | 66.3/68.0 | JGN22599B1M | 110 | 50/60 | 130/180 | 2350/2450 | 672.0/696.0 | 19.03/19.71 | 2.1/2.6 | 53.27/66.12 | 52.3/56.3 | JGN22599B2H | 220 | 50/60 | 110/140 | 2500/2700 | 687.4/742.4 | 19.47/21.02 | 1.96/2.29 | 49.86/58.16 | 66.3/68.0 | JGN22599B2M | 230 | 50/60 | 50/56 | 1380/2530 | 440.8/539.4 | 12.48/15.27 | 0.9/1.0 | 22.96/25.51 | 52.8/58.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|  | ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request. Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request. CROWN reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
|
|
