‧AC‧E40 Series

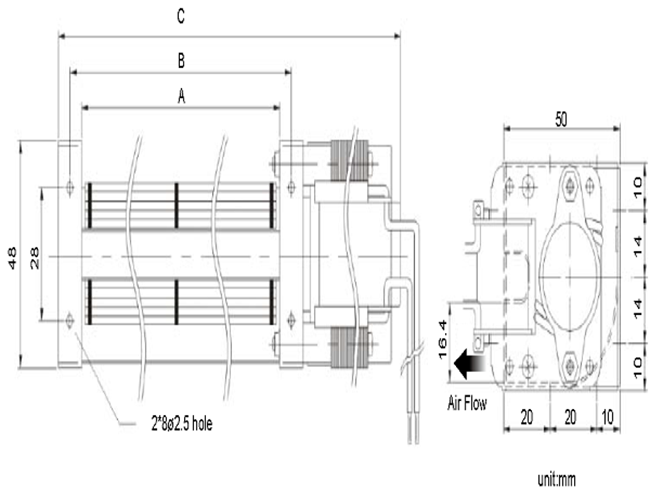

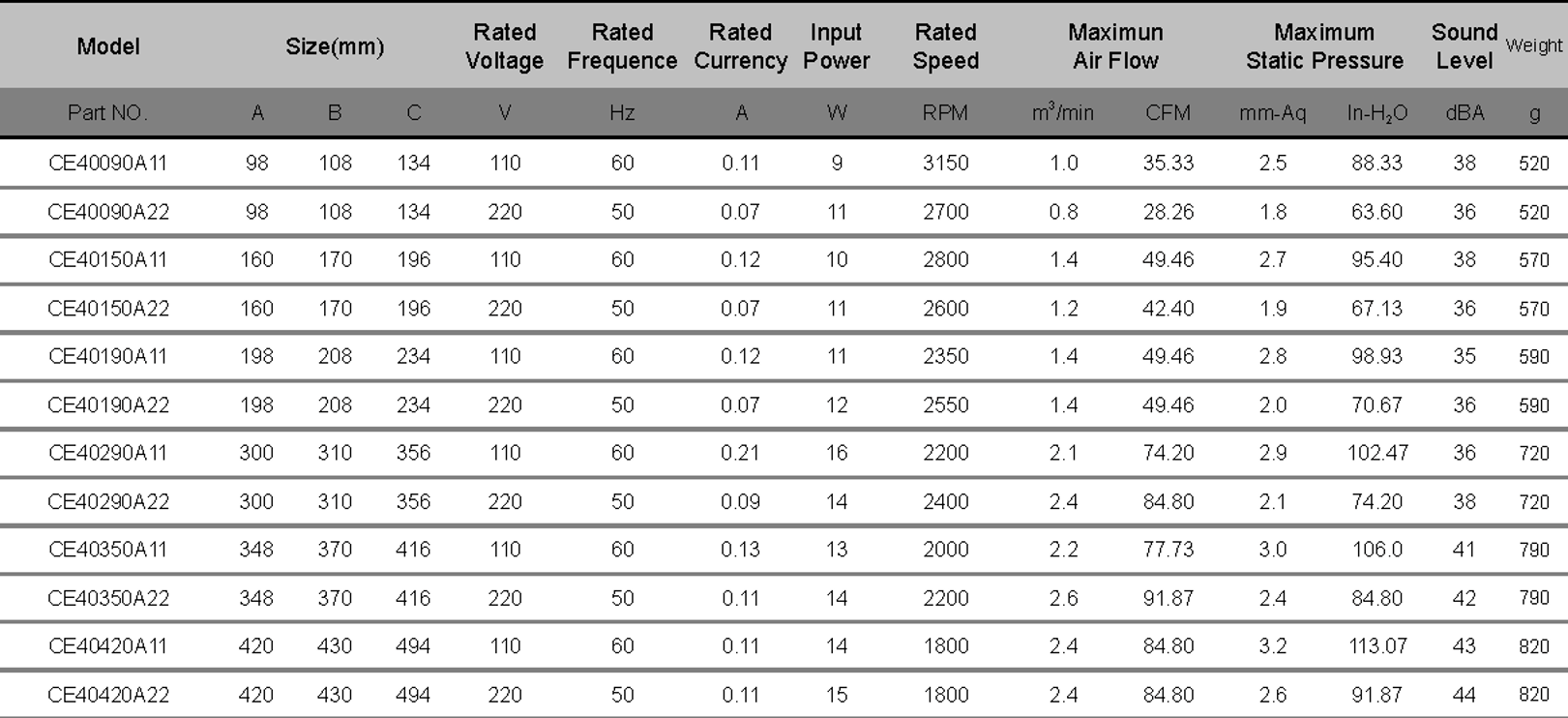

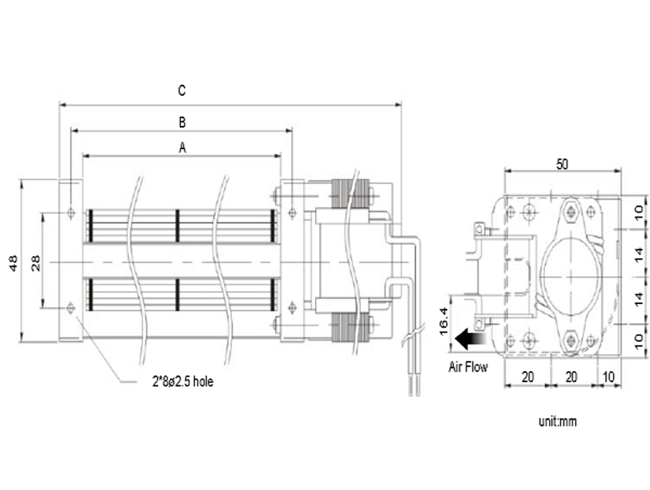

Model   No

A

(mm)

B

(mm)

C

(mm)

VAC

Hz

Current

W

RPM

m/min

CFM

mm-Aq

Inch-H2O

db(A)

CE40090A11

98

108

134

110

60

0.11

9

3150

1.0

35.33

2.5

88.33

38

CE40090A22

98

108

134

220

50

0.07

11

2700

0.8

28.26

1.8

63.60

36

CE40150A11

160

170

196

110

60

0.12

10

2800

1.4

49.46

2.7

95.40

38

CE40150A22

160

170

196

220

50

0.07

11

2600

1.2

42.40

1.9

67.13

36

CE40190A11

198

208

234

110

60

0.12

11

2350

1.4

49.46

2.8

98.93

35

CE40190A22

198

208

234

220

50

0.07

12

2550

1.4

49.46

2.0

70.67

36

CE40290A11

300

310

356

110

60

0.21

16

2200

2.1

74.20

2.9

102.47

36

CE40290A22

300

310

356

220

50

0.09

14

2400

2.4

84.80

2.1

74.20

38

CE40350A11

348

370

416

110

60

0.13

13

2000

2.2

77.73

3.0

106.0

41

CE40350A22

348

370

416

220

50

0.11

14

2200

2.6

91.87

2.4

84.80

42

CE40420A11

420

430

494

110

60

0.11

14

1800

2.4

84.80

3.2

113.07

43

CE40420A22

420

430

494

220

50

0.11

15

1800

2.4

84.80

2.6

91.87

44

• ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing

• 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.

• Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.

• CROWN reserves the right to change data and improve electrical or mechanical design without notice, data tolerance  +-10%
