‧DC‧AGE13038

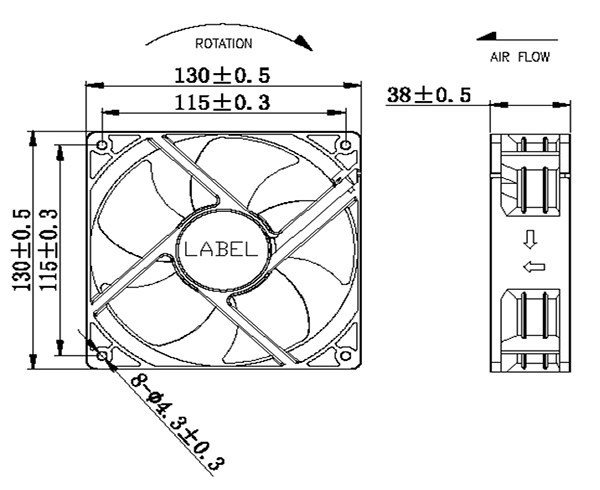

130x130x38mm
145.0 CFM
CRON ELECTRONICS DC AXIAL FAN 13038

額定電壓

頻率

輸入功率

參考轉速

             最大風量

             最大風壓

噪音

Model     No

VAC

Range(V)

Current

RPM

CFM

m3/min

Inch/H2O

mm-H2O

db(A)

AGE13038_12L

12

7.0~13.2

0.33

2600

141.30

4.00

0.32

8.20

41.0

AGE13038_12M

12

7.0~13.2

0.43

2850

145.00

4.11

0.35

8.80

43.0



































































































































































  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing

  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.

  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.

  • CROWN reserves the right to change data and improve electrical or mechanical design without notice, data tolerance  +-10%





馬達類別:DC Brushless Motor

IP 防護:-

外框 (Frame):Plastic(94V-0)

葉輪 (Impeller):Plastic(94V-0)

軸承 (Bearing):Ball Bearings

重量 (Weight):0.259 KG
